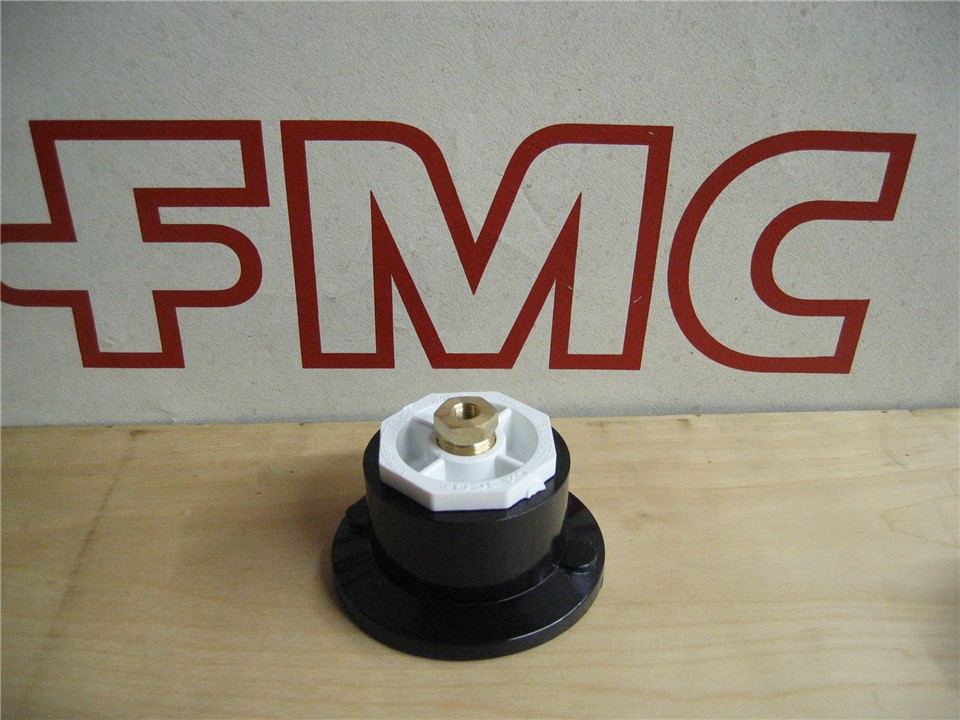

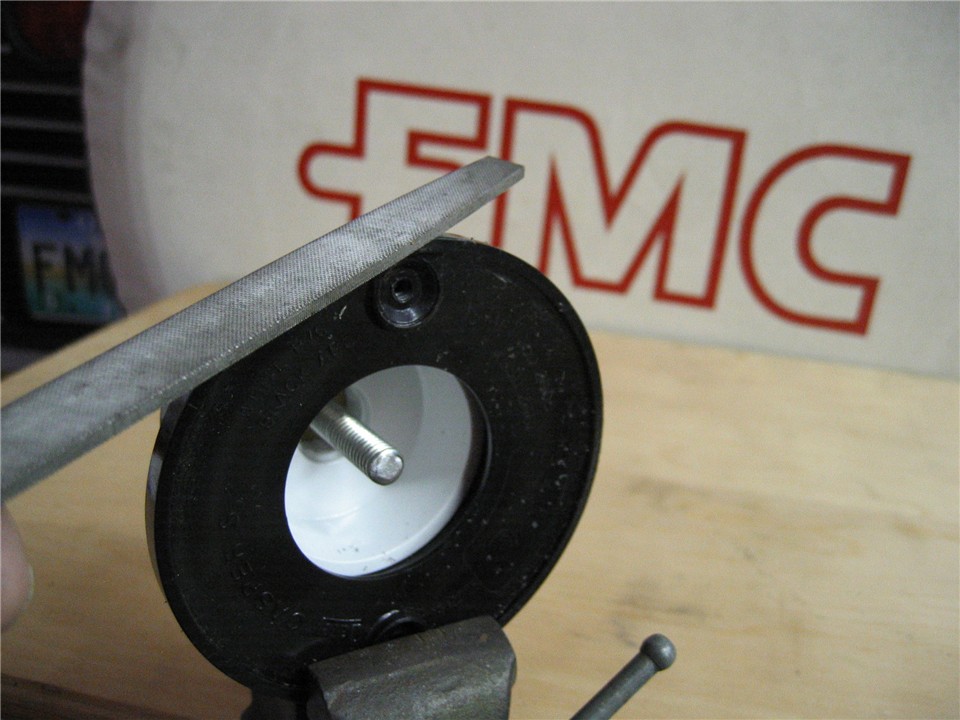

(2 Comments) Debur/trim just enough to fit the trans./diff. flanges. (Go easy!) | Assemble! | Assemble! | A lathe would be better but a steady hand and some eye protection is adequate. |

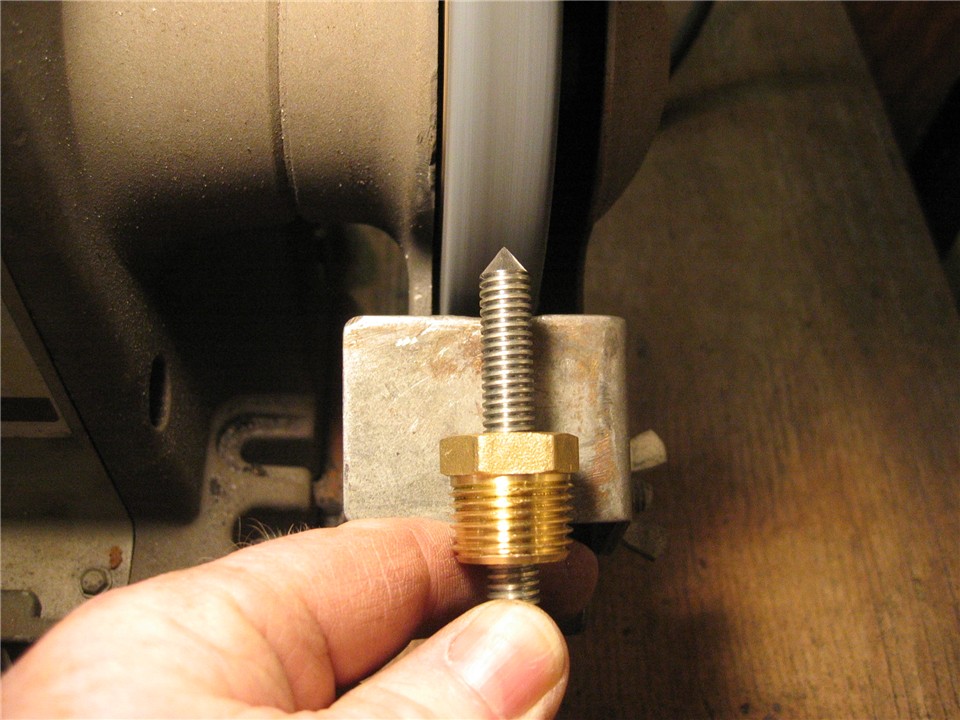

Cut to length and debur threads. | Tap right through the pipe threads and into the smooth bore below. There is plenty of material there although not much is required for this application. | This bushing size was selected because the 1/8th inch female iron pipe (npt) thread size uses the same tap drill size as the 3/8-16 tap used for the threaded "ready-rod". | |

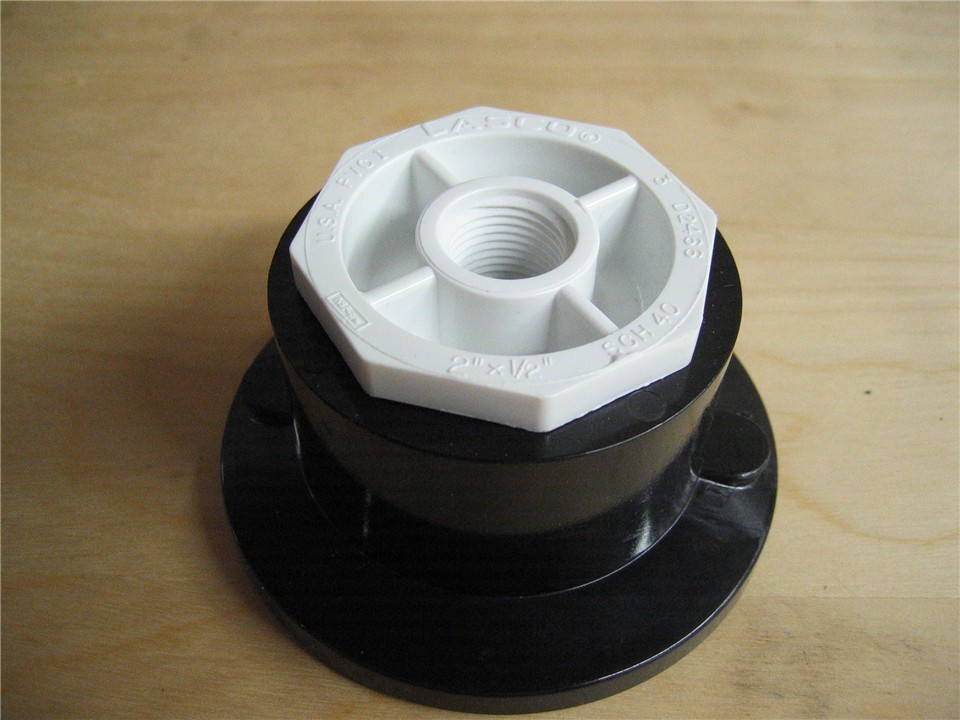

This standard floor drain has an almost perfect 4-1/4 diameter flange. | (1 Comments) Selection of components for the Mark-II was a bit more thoughtful. Lowe's had all of this "stuff". A $20 bill may leave some small change but not enough for coffee. | ||
