Brake Job and Redesign
Author: LCAC_Man (Show all albums)

standard brake job plus the addition of electric powered hydroboost system for the rear brakes
Show Newest Photos First | Show Oldest Photos First51 Photos - Page : [1] [2] [3] [4] [5]

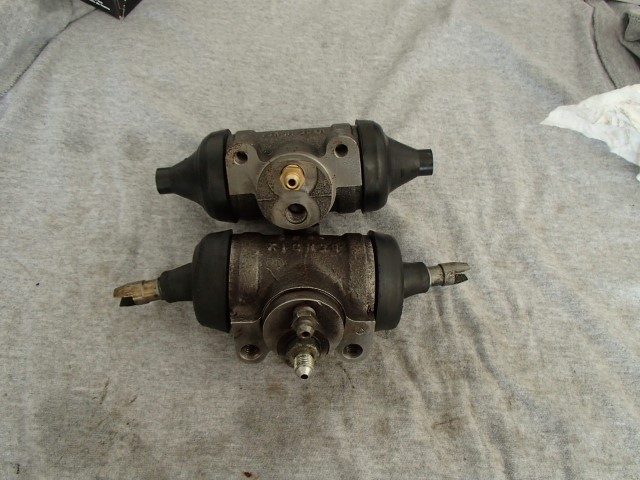

WC37150 wheel Cylinder is a match for the originals

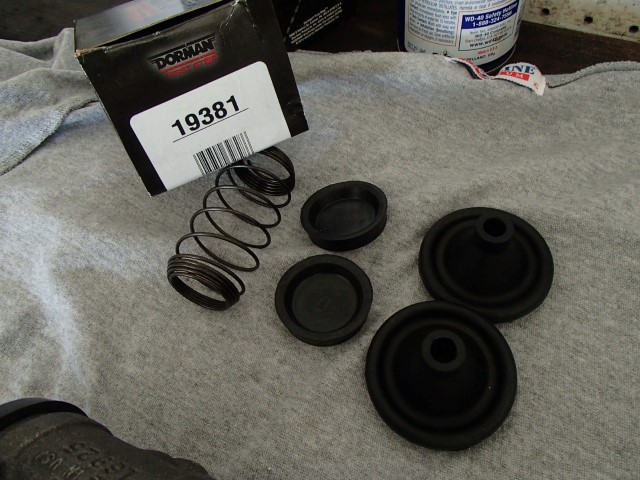

19381 Dorman Kits are cheap but the outer dust boots aren't a great fit. Thankfully the ones I have are still in really good shape. The spring and internal seals are exact matches.

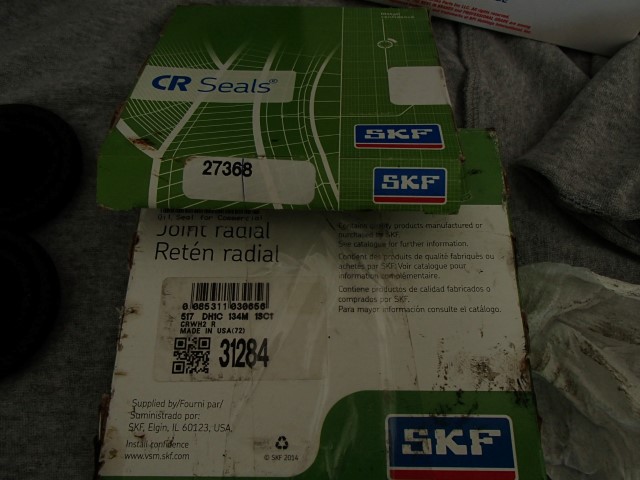

CR27386 and CR31284 are good fits for the front and rear hub grease seals

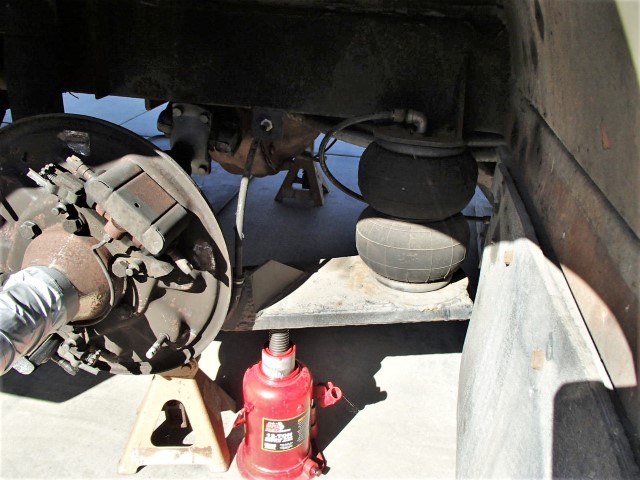

rear airbag installation

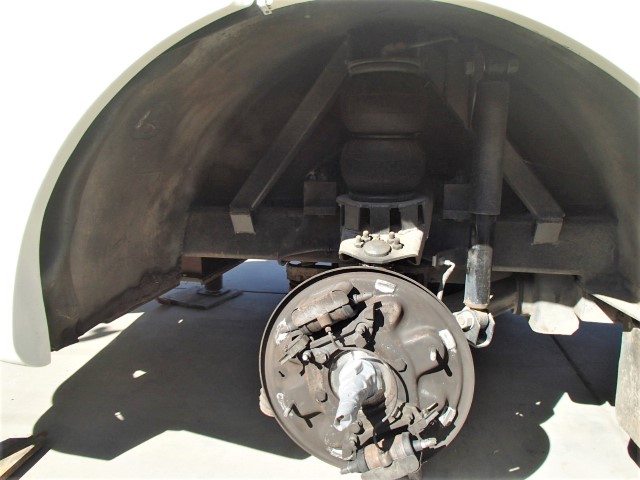

front airbag installation

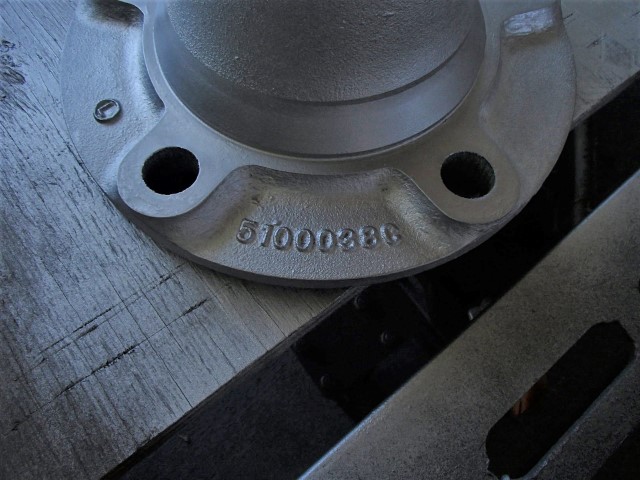

front hub part number

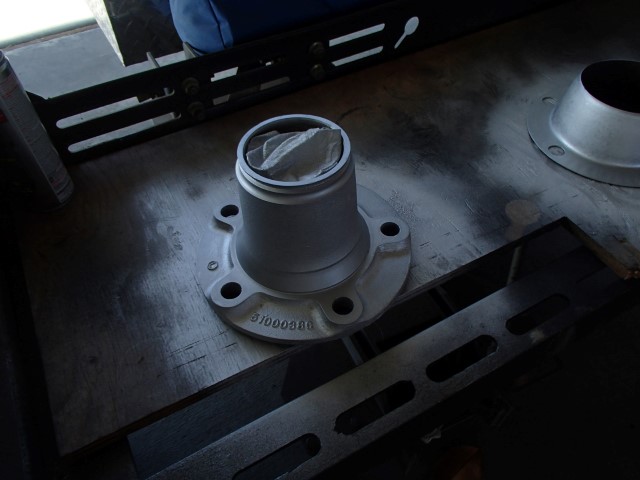

front hub cleaned and painted

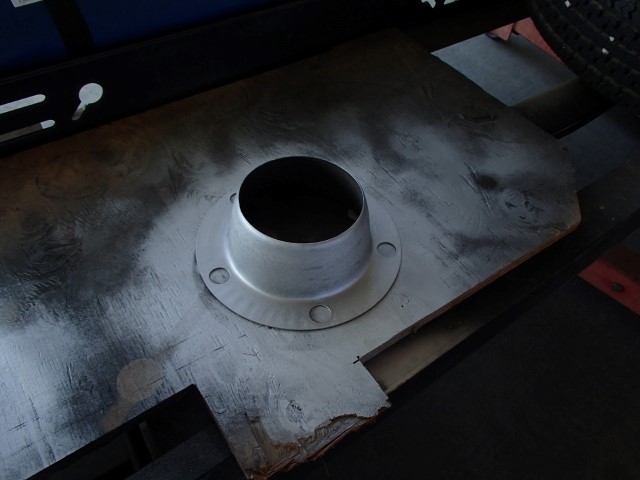

rear hub inner dust/heat shield

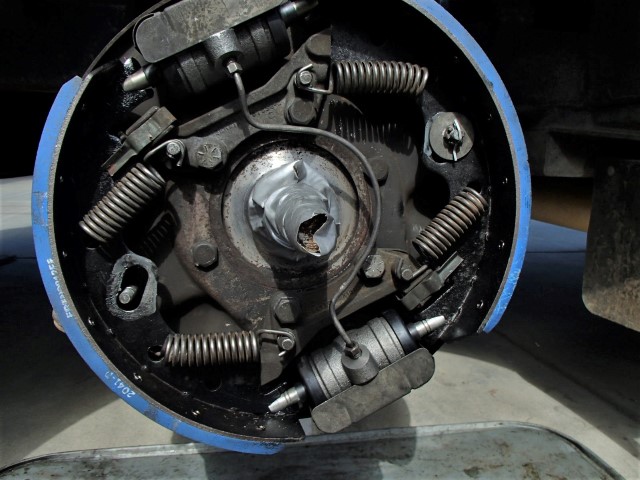

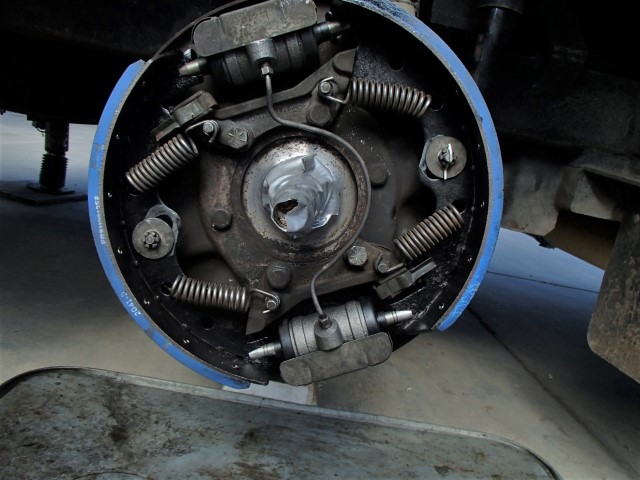

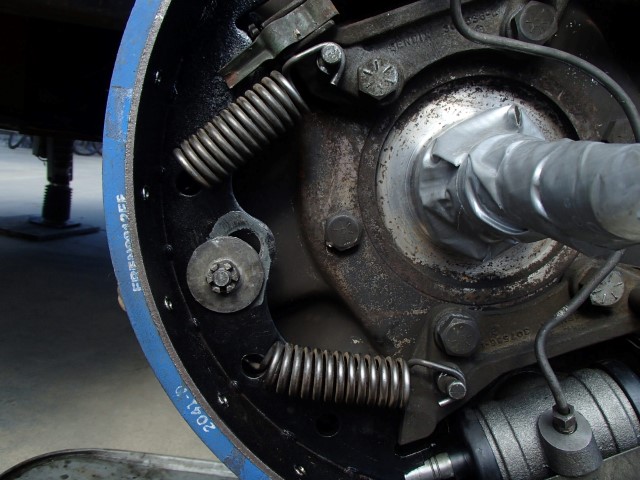

drivers front shoes installed

no extra washers required to get the .015" play needed on this position

(1 Comments)

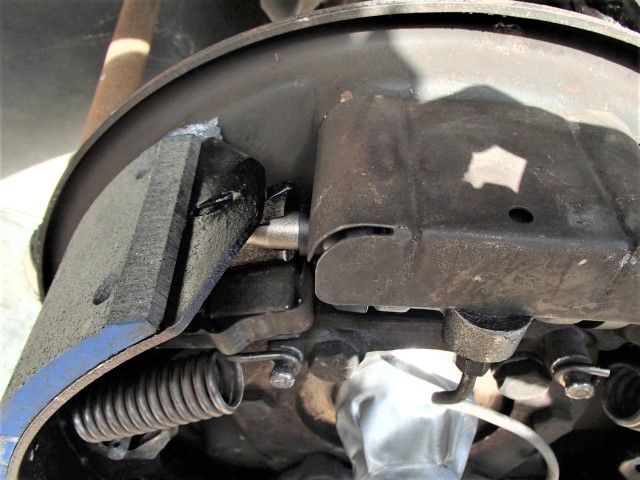

diagonal slot pointing toward the wheel rotation...not sure if this is intentional or not?

shoe tabs turned in when in this configuration
