FMC Brake Drum NEW Manufac by DuraBrake #13174
Author: hemi354az (Show all albums)

Pictures and dimension on a NEW Manufactured FMC Brake Drum made by DuraBrake
Show Newest Photos First | Show Oldest Photos First18 Photos - Page : [1] [2]


(1 Comments)

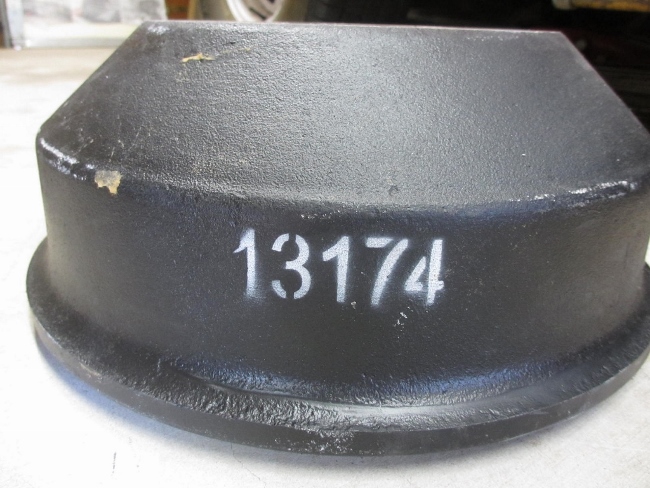

DuraBrake FMC Brake Drum #13174

(1 Comments)

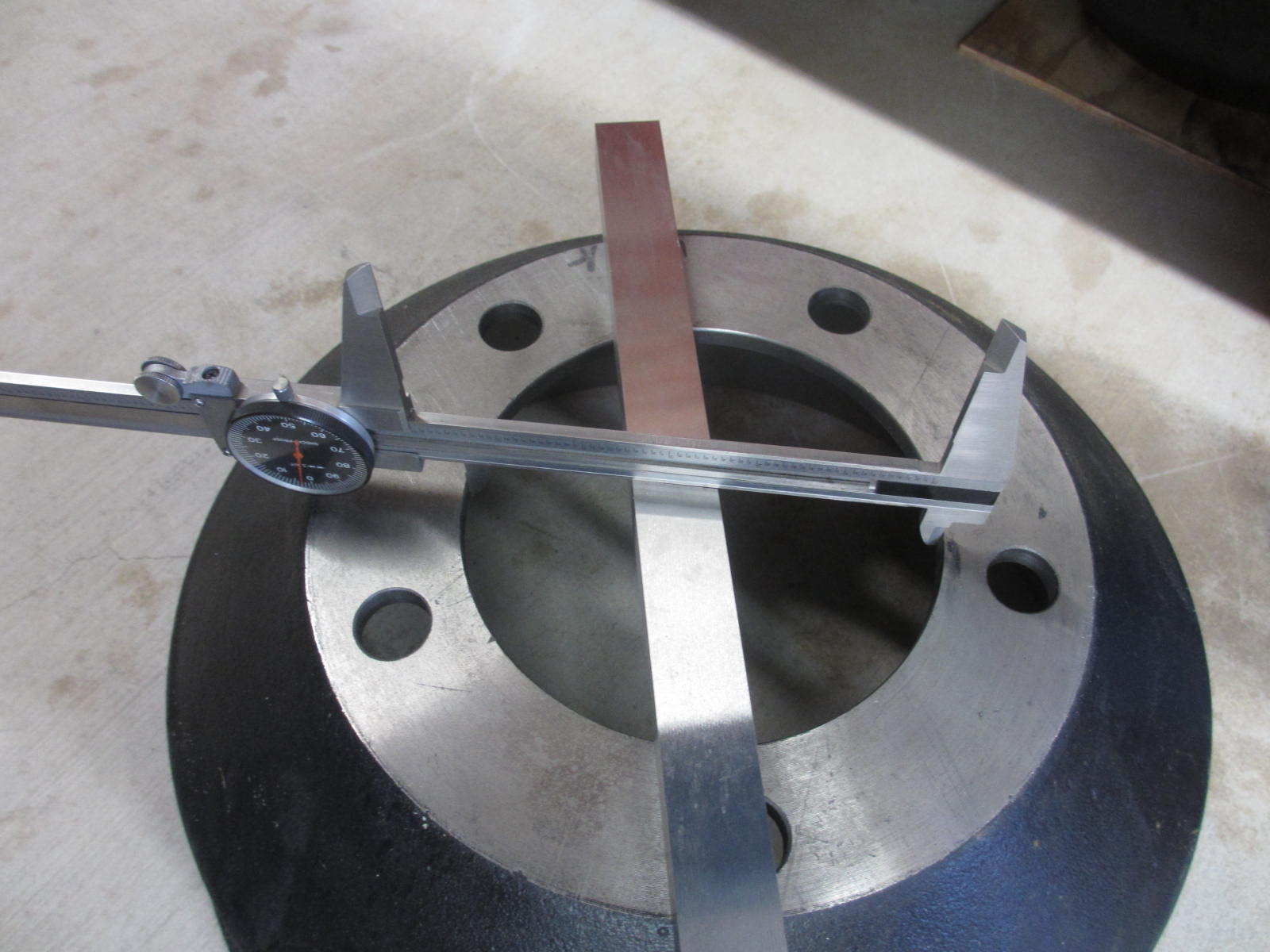

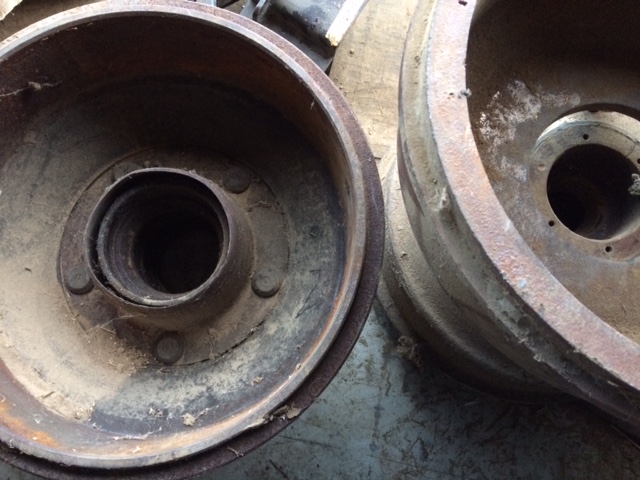

Old FMC Drum RAW CASTING RIGHT and Old machined used Drum LEFT

(1 Comments)

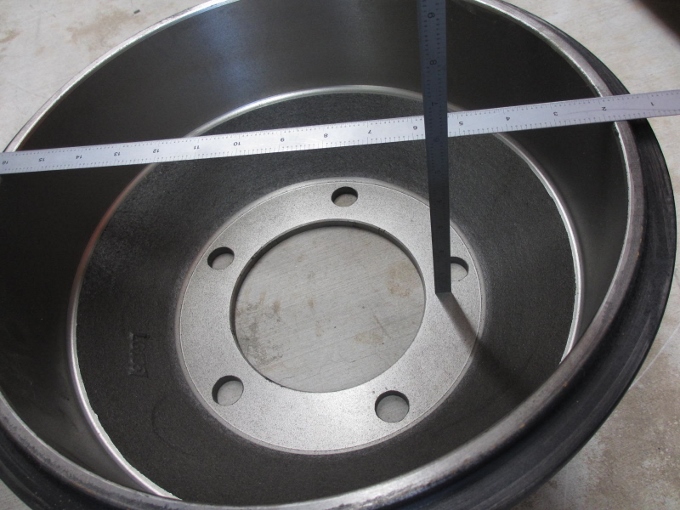

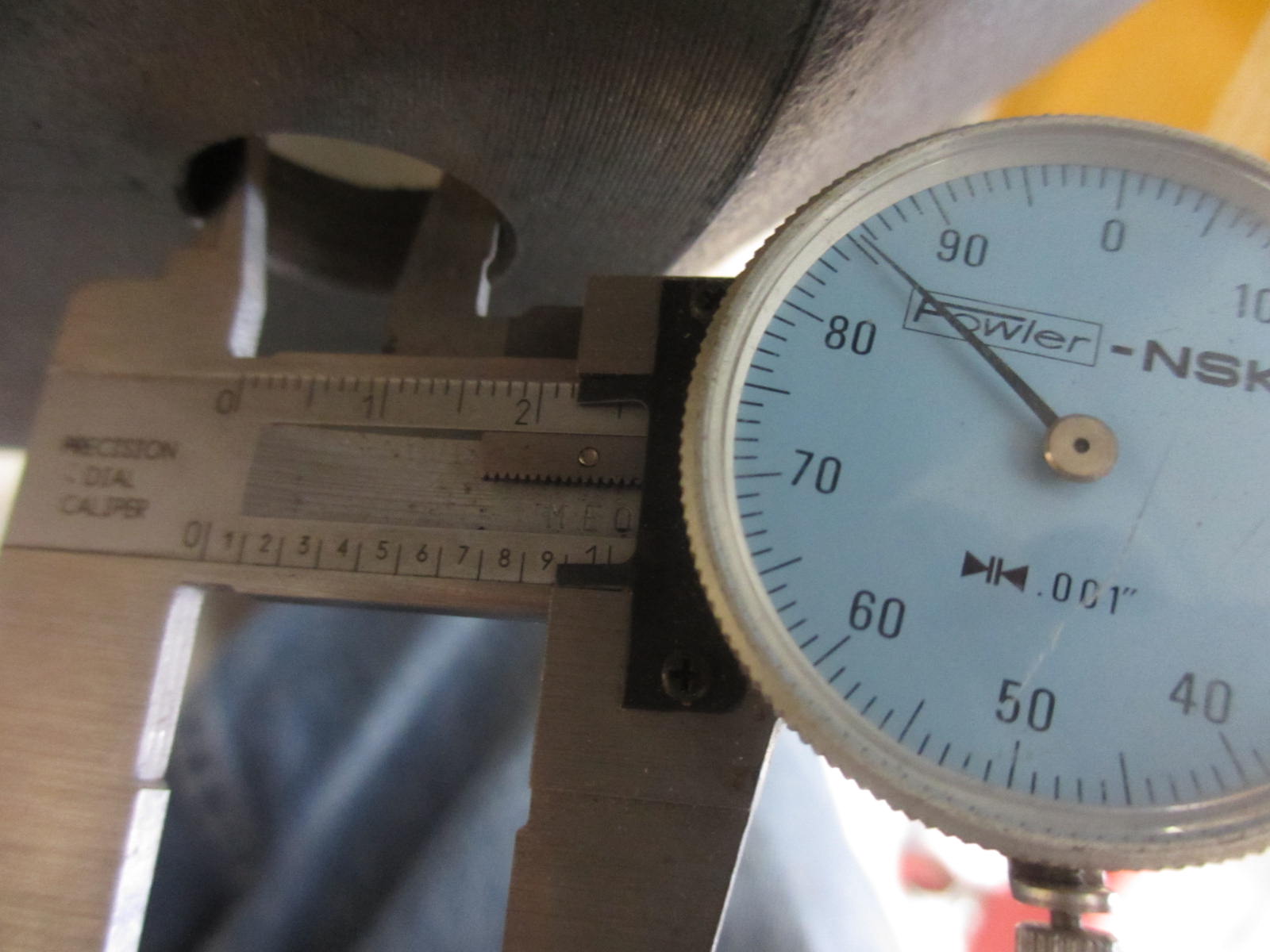

Measuring depth of machined drum.

(1 Comments)
6.18 inches Drum Depth


(1 Comments)

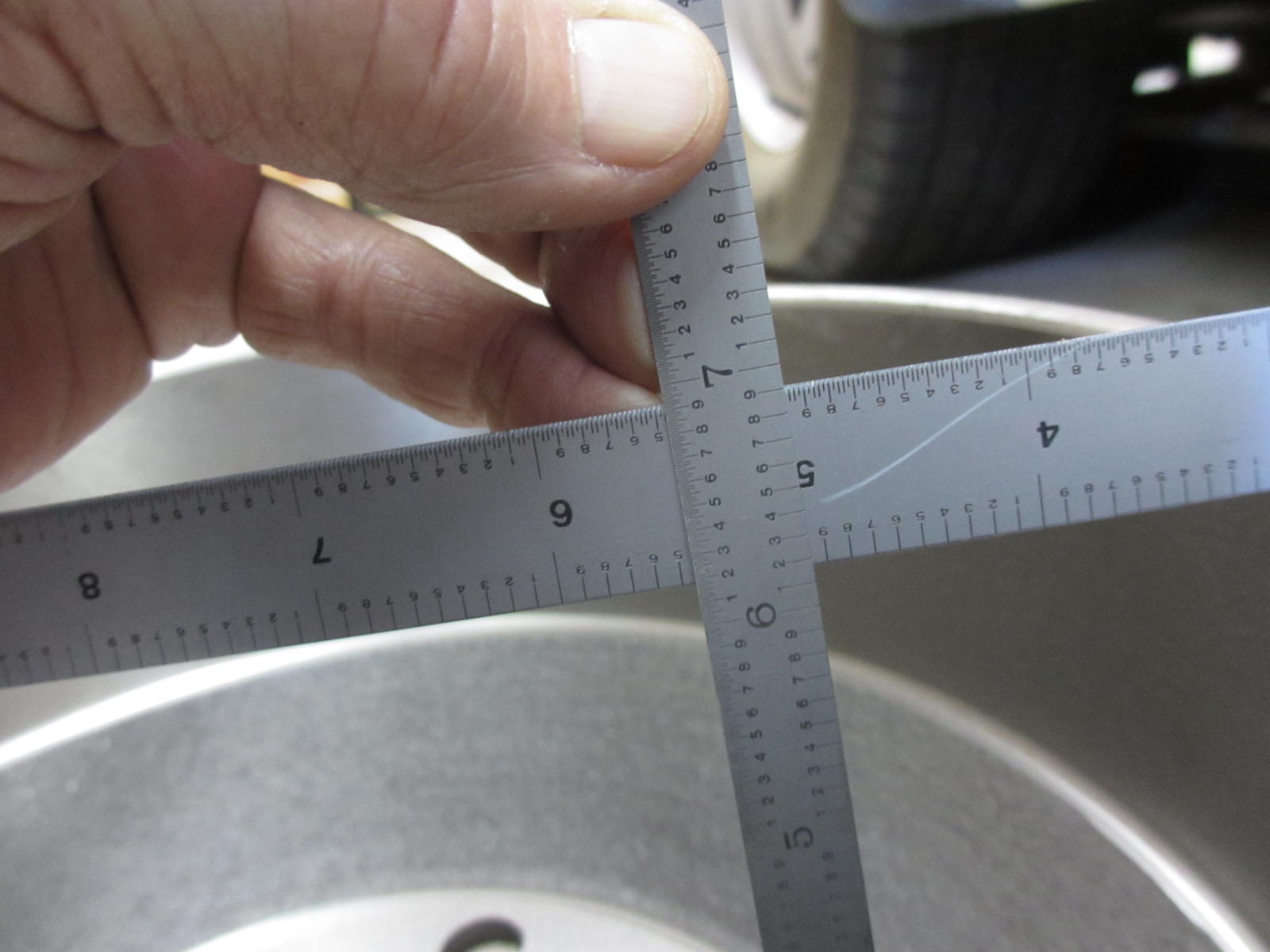

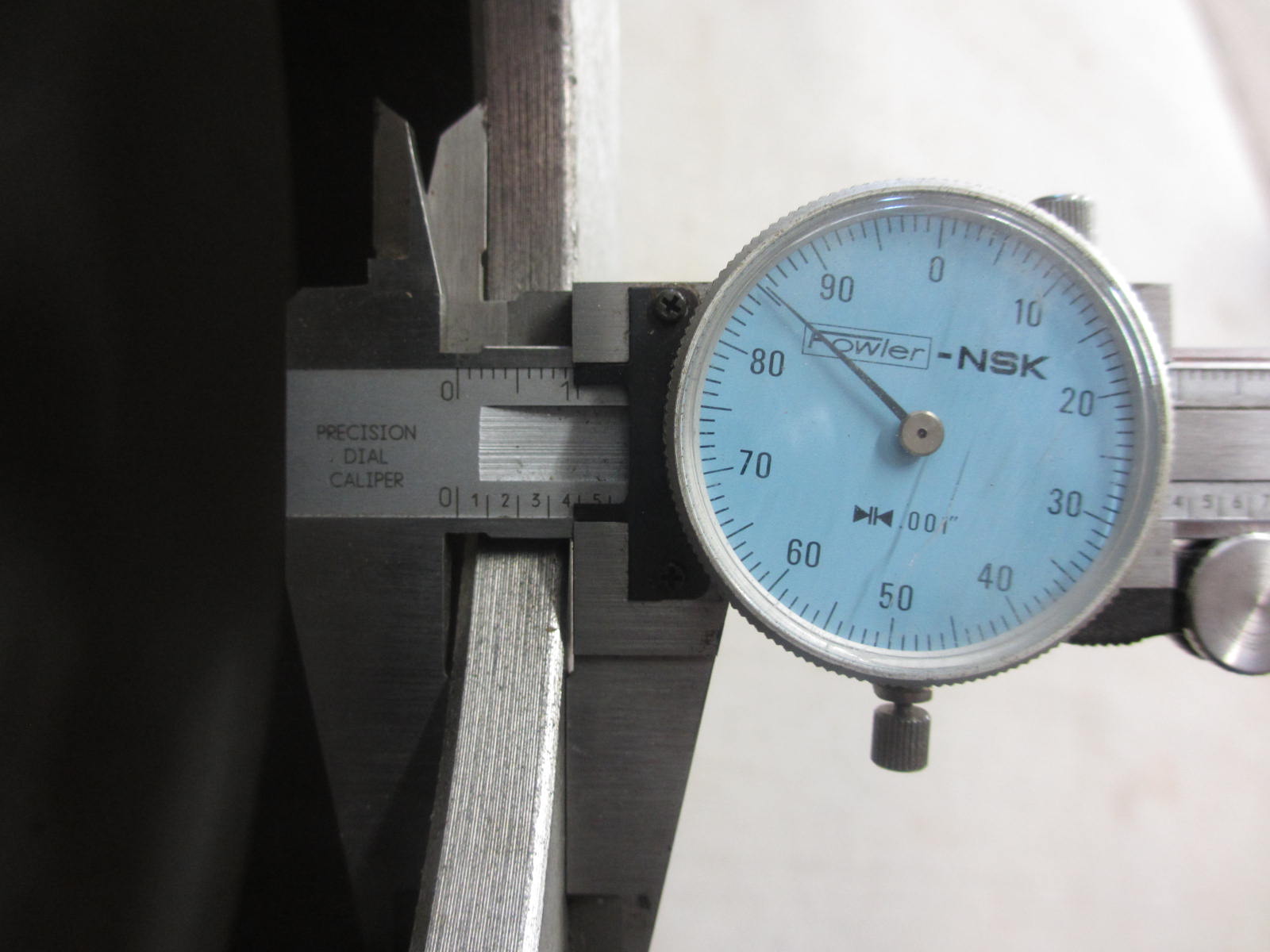

Measuring the Mount Flange THICKNESS

(1 Comments)
0.385 inch Mount Flange Thickness

(1 Comments)

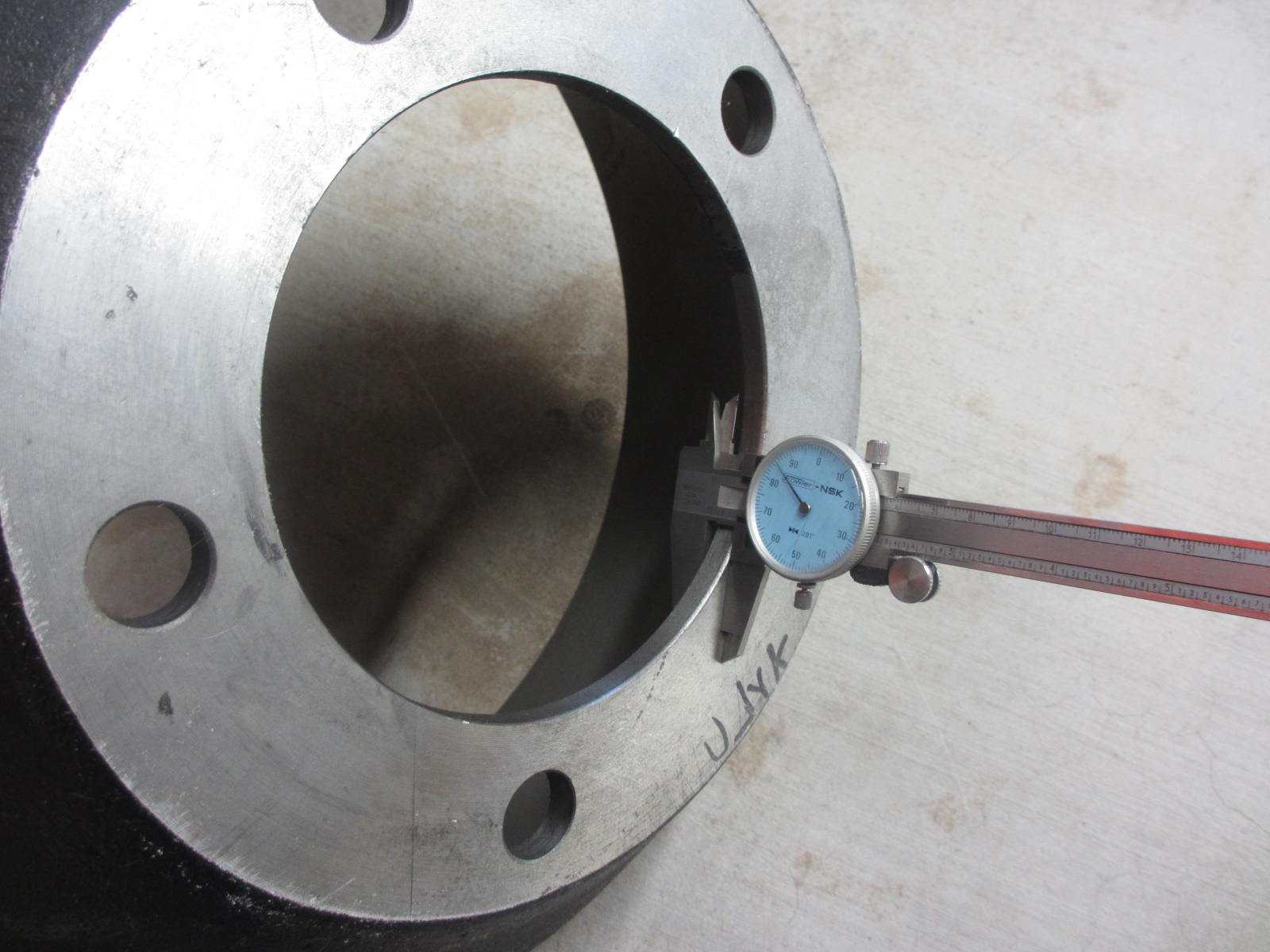

Measuring the Hub Pilot DIAMETER

(1 Comments)

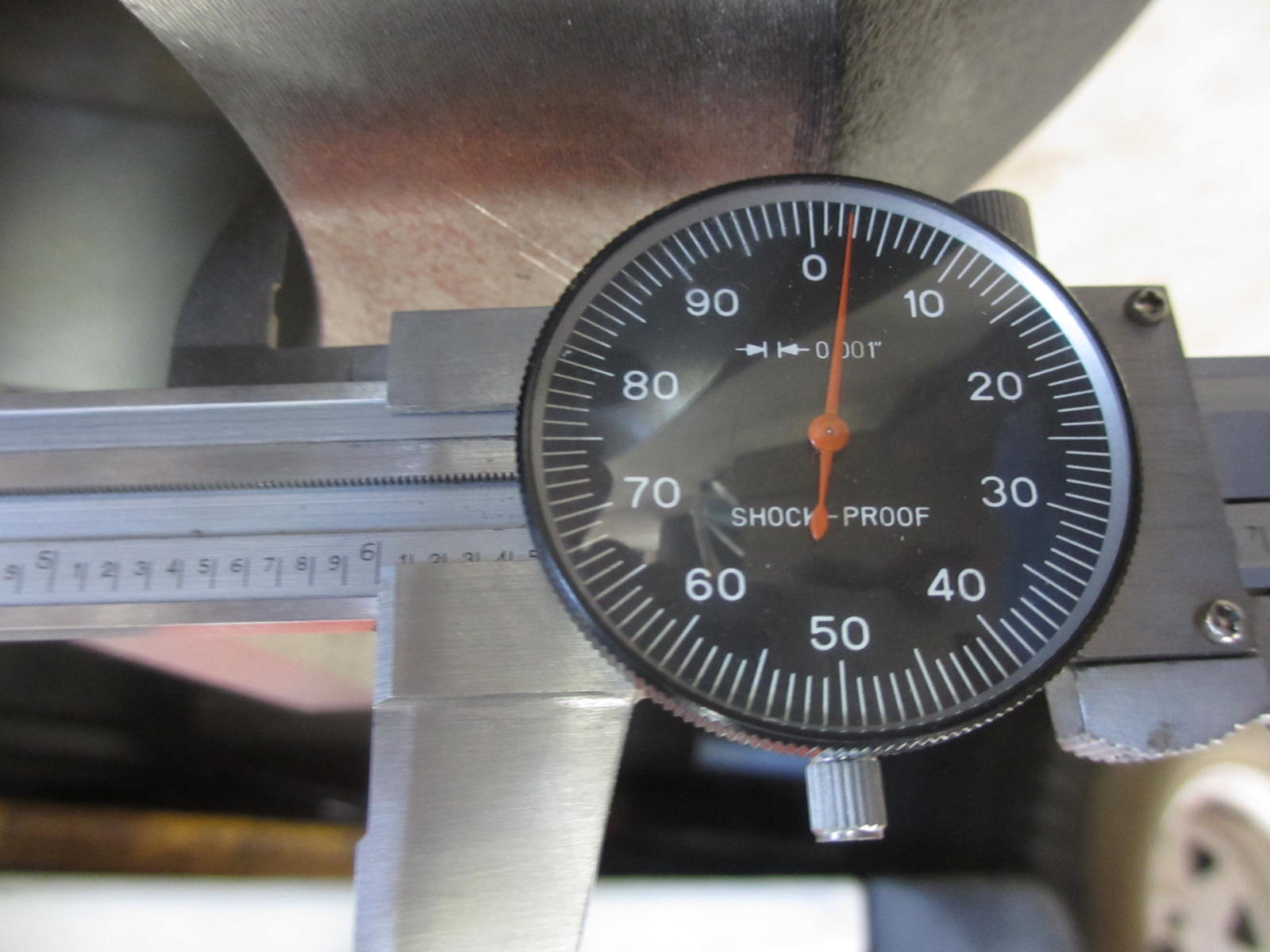

6.002-.004 inch Hub Pilot Diameter


(1 Comments)
0.885 inch Stud Hole Diameter

(1 Comments)

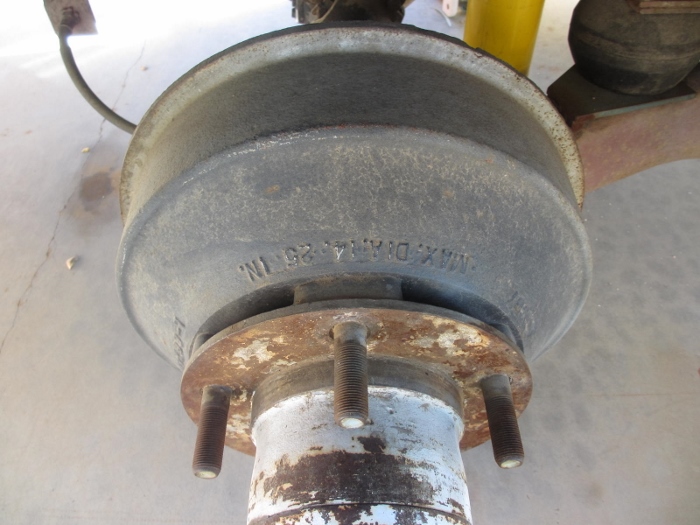

Stock FMC Rear Drum on #120

(1 Comments)

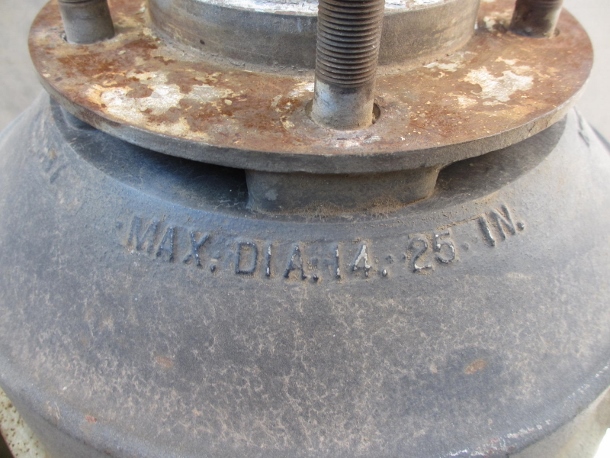

Stock Drum MAX DIAMETER 14.25 Inch DIAMETER

(1 Comments)

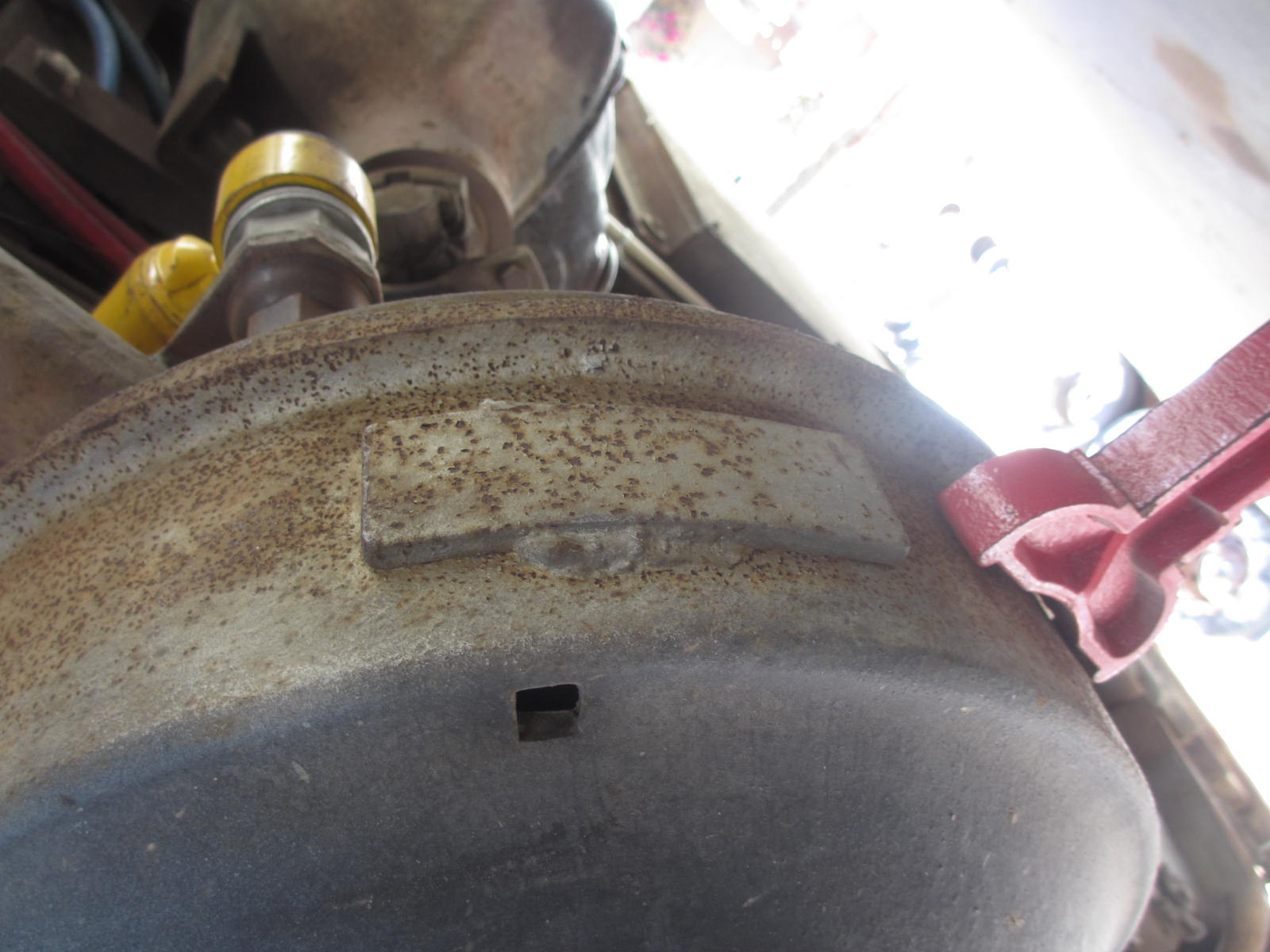

Stock Drum Drain Hole and Balance Weight
