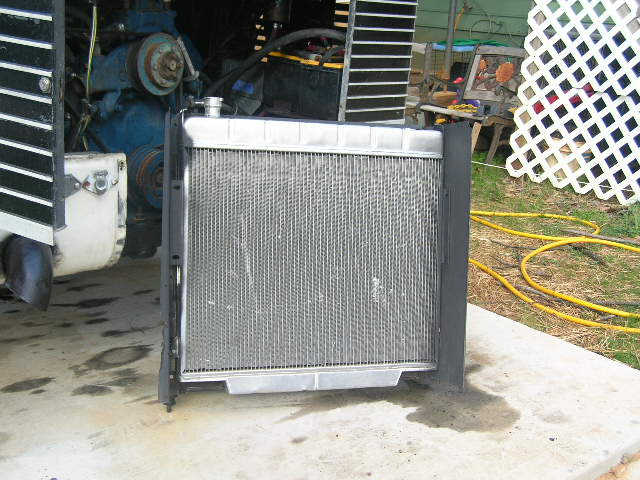

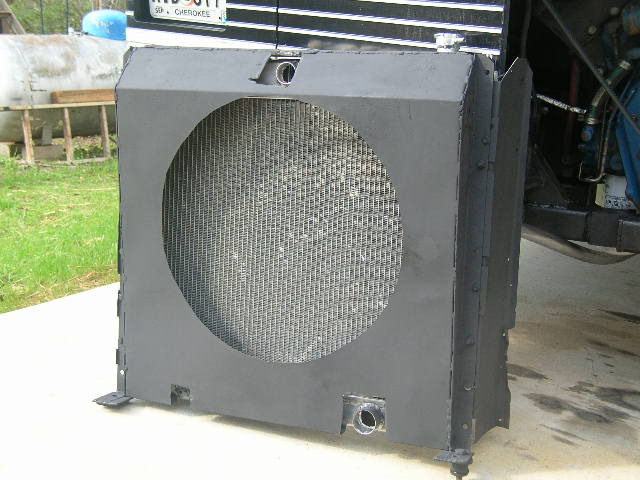

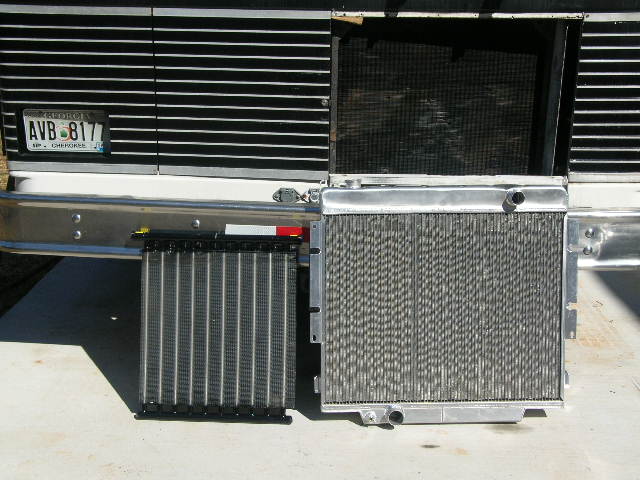

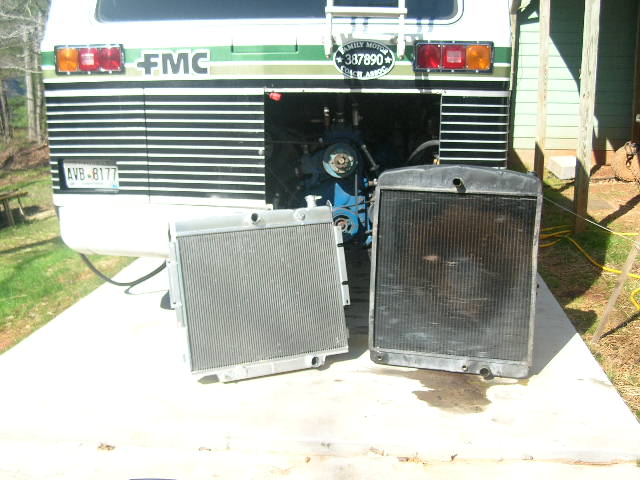

New Allison transmission cooler and heavy duty F250 two core Aluminum radiator (unmodified at this point). | Size comparison and showing neck, fill and suction location changes to match existing. | With shroud modified and mounted. Will dress up holes with Dynamat when hoses are in place. | (1 Comments) Ready to go in when engine compartment ready. |

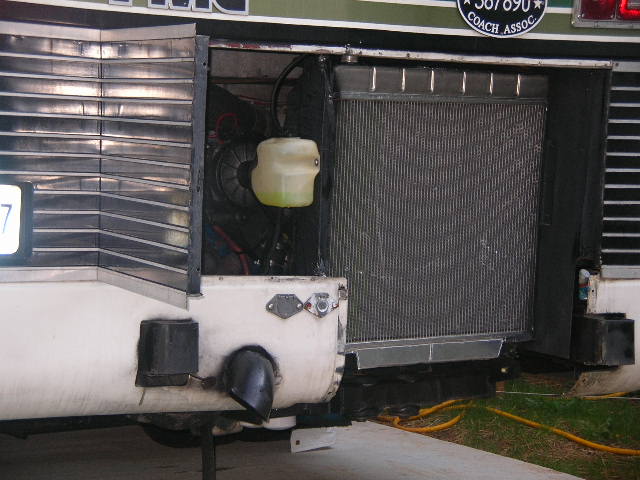

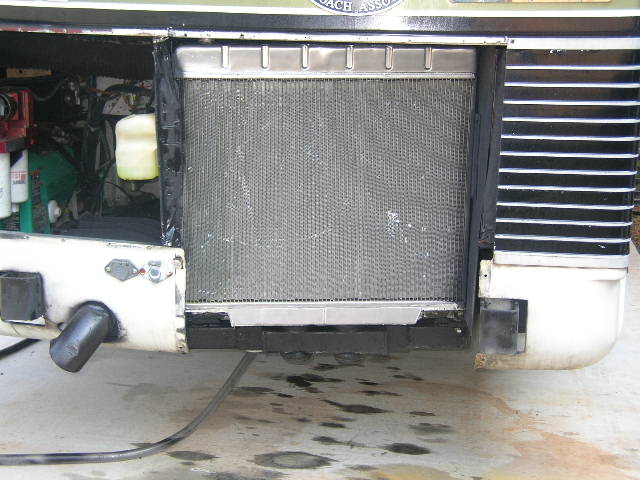

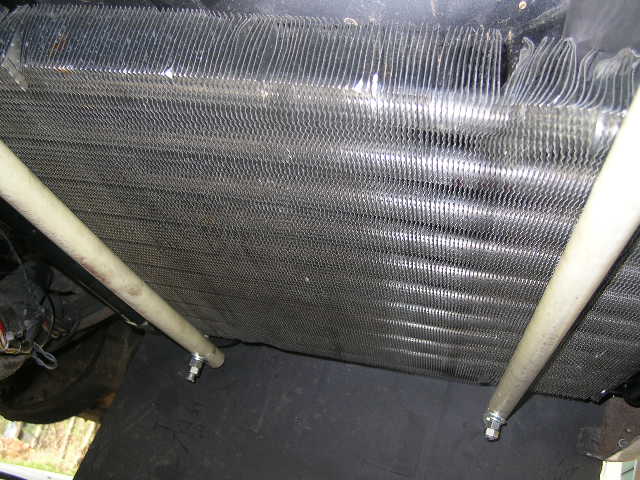

Allison transmission cooler mounted under propane tank with all thread and heavy duty PVC. Not dirty, has 5 o'clock shadow. | Mounted. The bottom is about 8 inches higher than the old radiator, hopefully will collect less dirt, oil, etc. | Another view. | Dynamat extreme sealing things up. |

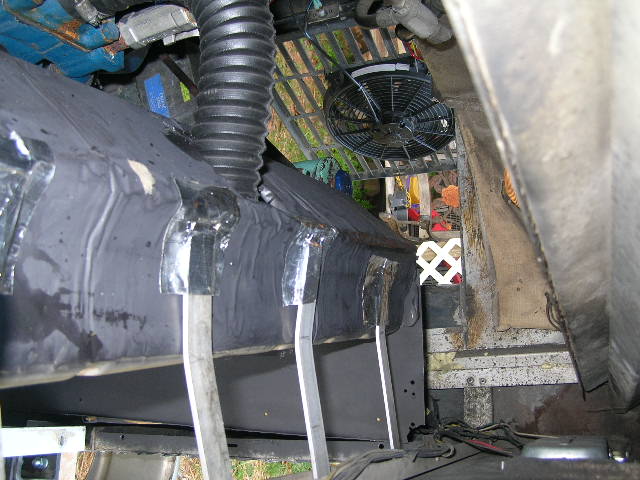

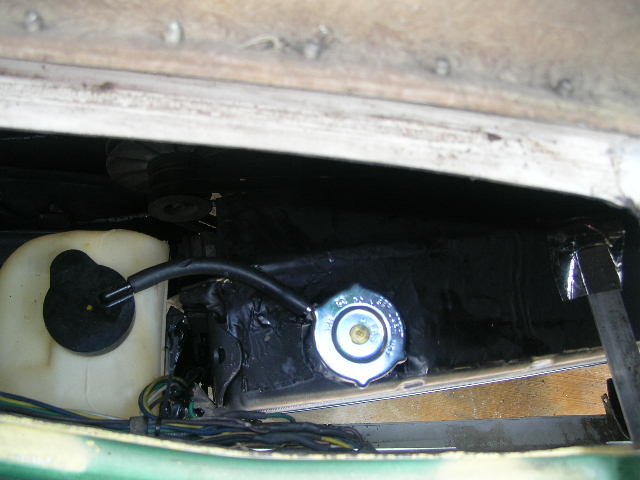

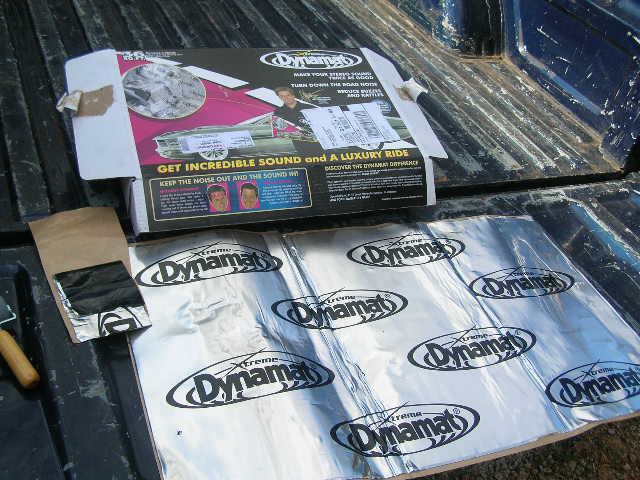

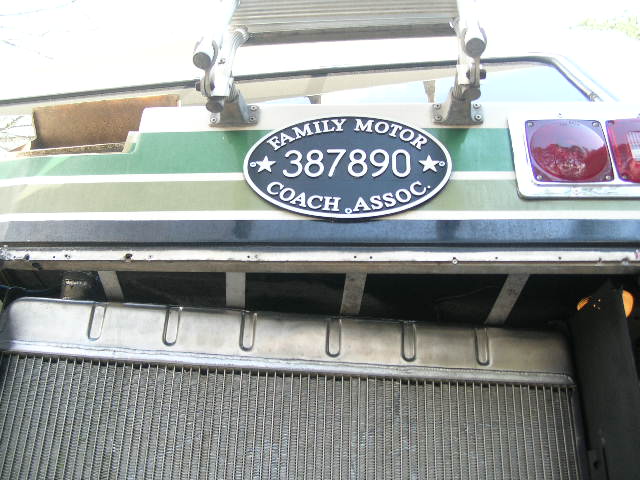

View from access port.I did raise the overflow tank up from a previous picture. | Aluminum strap in place to support Dynamat to keep hot air from recirculating into the engine compartment/radiator. | Another view of aluminum strap to help support the Dynamat. | (1 Comments) This is great stuff to work with. Just be careful not to accidently get two sticky sides together. |
