Detroit Diesel Hydravac - Vacuum Boost Pump

Author: denshew (Show all albums) Developed a serious oil leak, NAPA Oil Seal 7918 did the trick. Also replaced vacuum hoses.

Show Newest Photos First | Show Oldest Photos First 11 Photos - Page : [1]

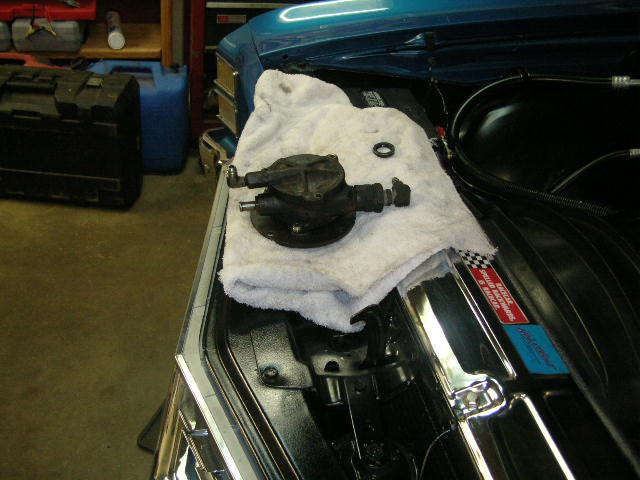

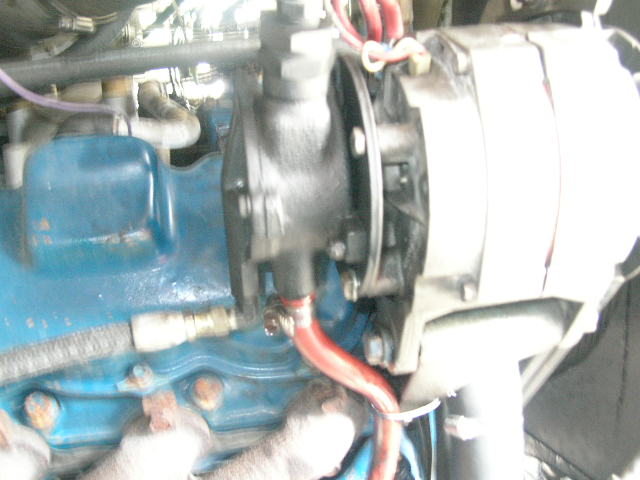

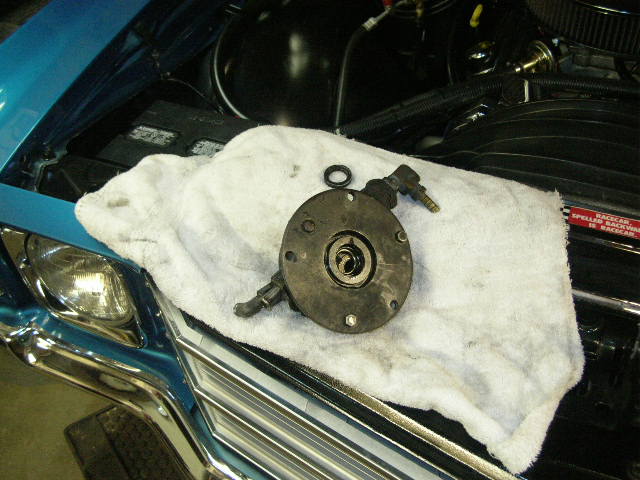

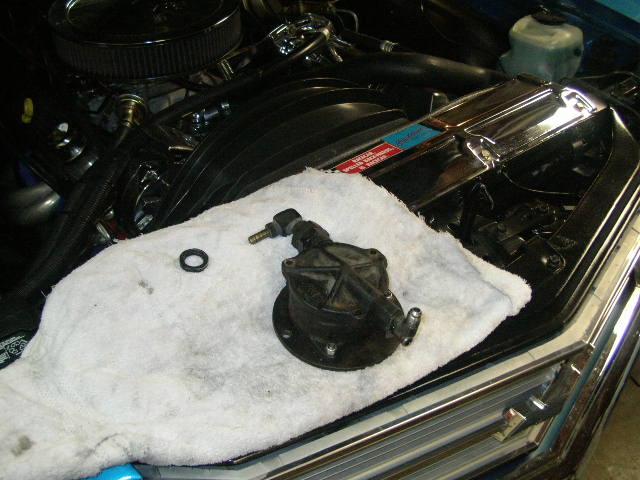

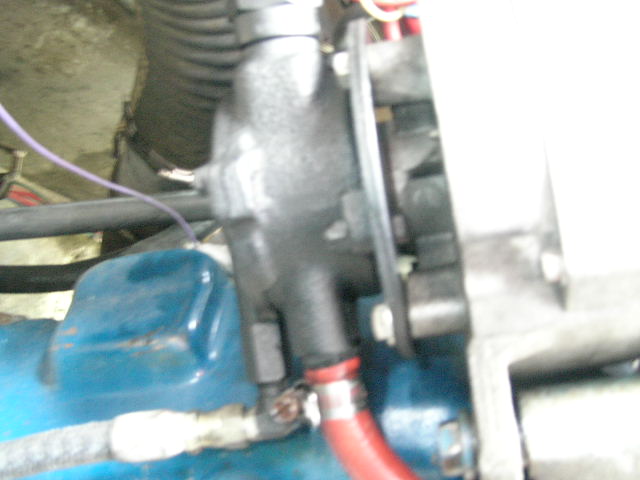

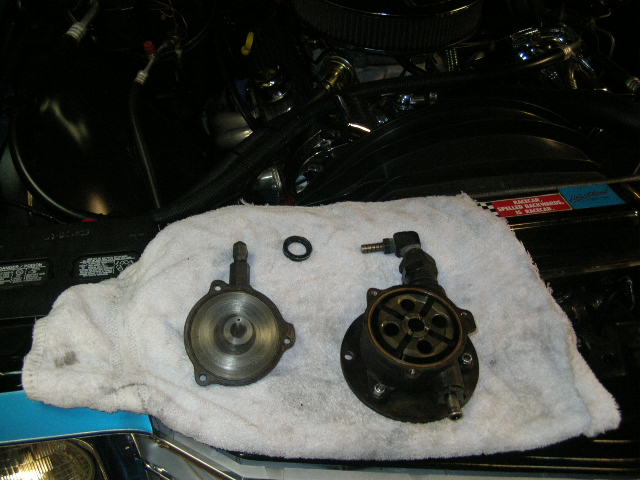

Hydra boost with leaky oil seal showing	Showing inside of pump	This is how it came off	Hydra vac / vacuum boost pump

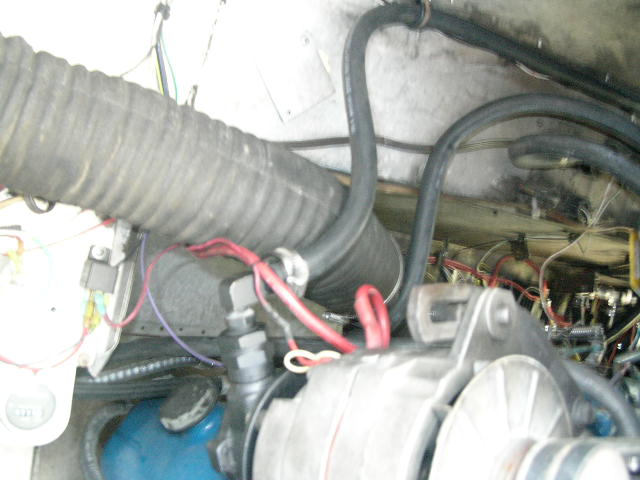

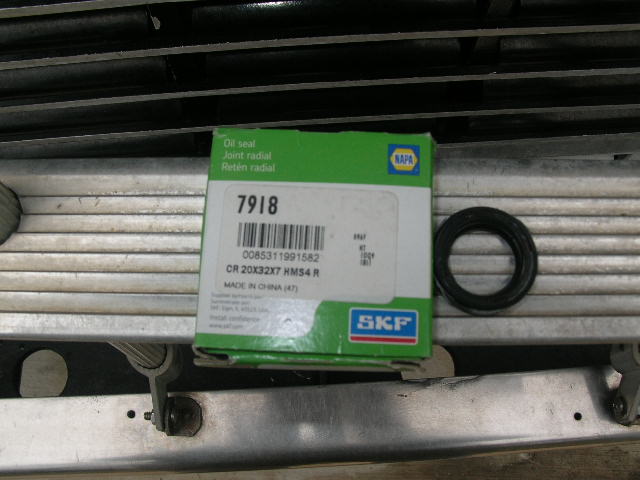

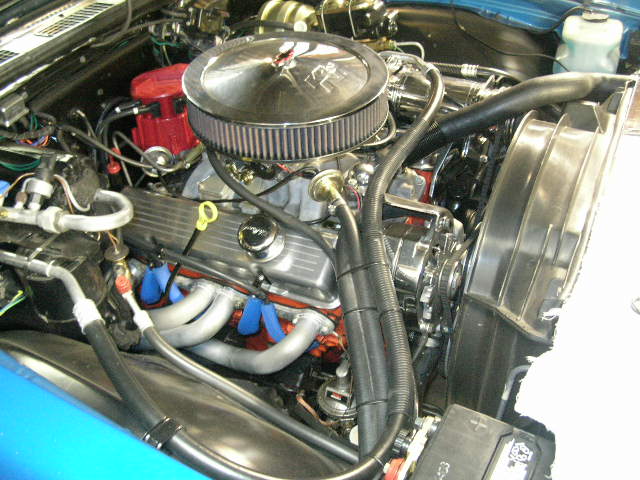

(1 Comments) Now how did a picture of "Mild" SBC end up here? <G>	Napa oil seal 7918	Degreased, painted and back in place	New vacuum line up and over instead of across the engine behind the water pump.

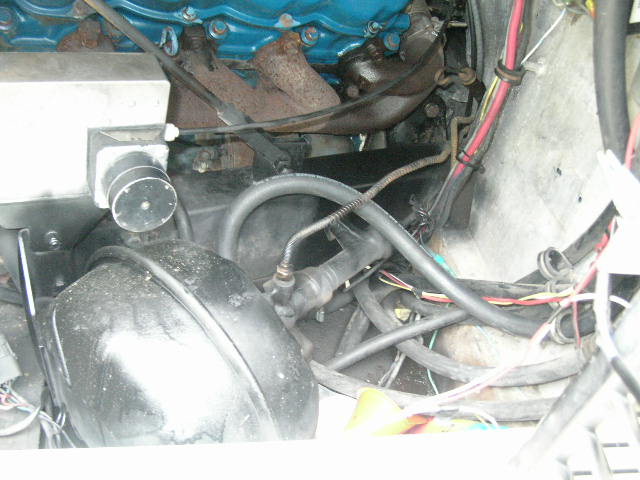

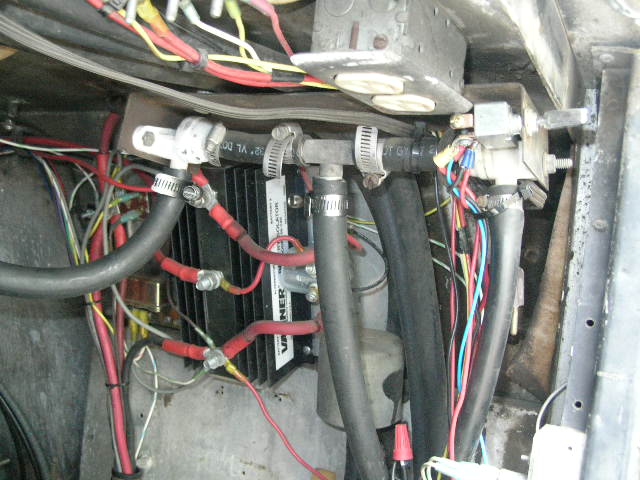

Another view of the Hydravac from the bottom	Vacuum manifold, new vacuum hoses. This picture shows it hooked up wrong. The vacuum hose from the hydravac need to go to the T in the middle. The two ends go to the brake boosters via one way valves. Had no vacuum assist on initial test run.	Rear brake booster and vacuum lines. On the upper left is the King Cruise unit with cable to throttle.That cable (or one like it) fell against the turbo and melted in OK or TX. Getting it stopped was a hoot..
